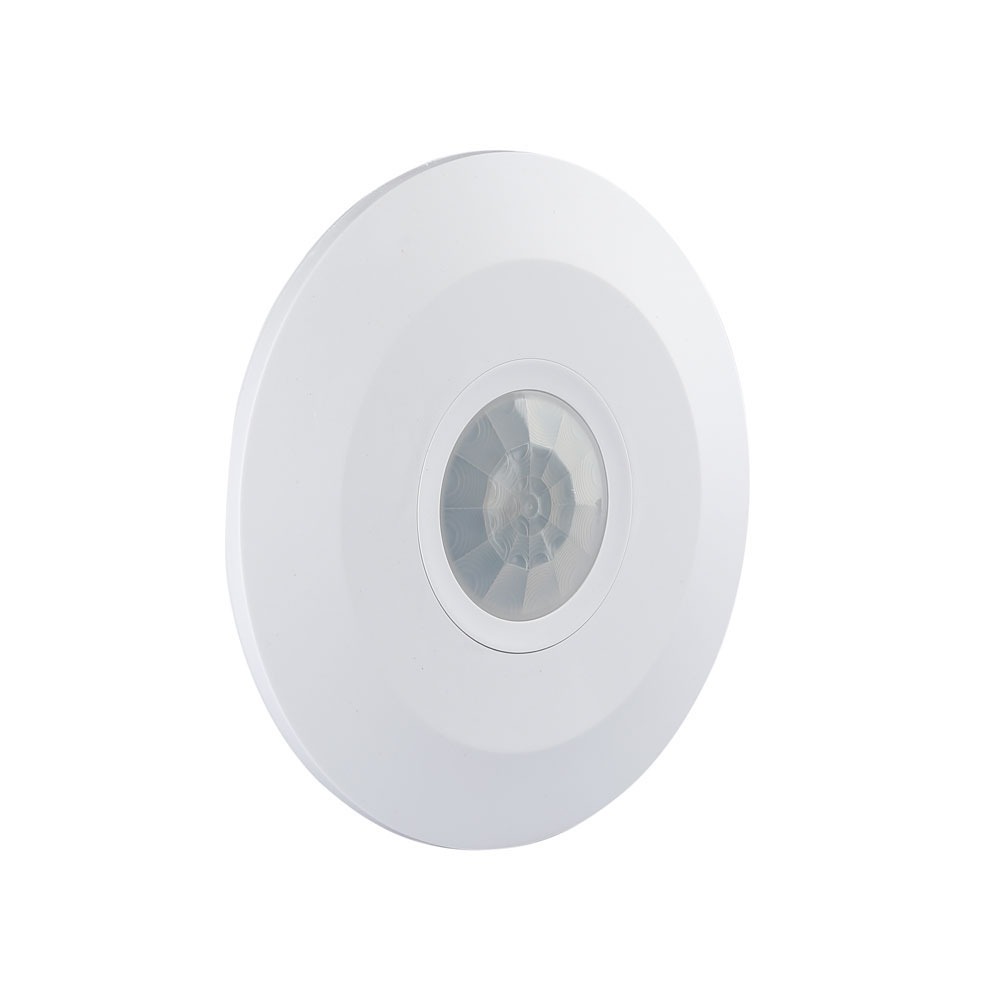

VT-8027 PIR CEILING SENSOR(FLAT)
The infrared motion sensor with integrated circuitry can detect heat signatures.
Adjustable time delay - Ambient light - Detection distance for various scenarios.
High-quality receivers for instant operation.
Efficient system for energy saving and security.
Compatible with V-TAC models.
|
Electricity Specifications
|
|
|---|---|
| Rated Load | Max 1000W LED |
|
General specifications
|
|
| Dimensions | 115x25mm |
| Warranty | 2 Years |
| Operation Temperature | -25°C to +50°C |
| Body Color | White |
| IP Rating | IP20 |
|
Led Lighting
|
|
| VT-Model | VT-8027-W |
| Body Material | PC |
| Input Power | AC:200-240V, 50Hz |
| Dimmable | N/A |
| Installation Type | Surfaced |
| Sensor Type | Infrared |
| Detection Angle | 360(Ceiling) 150(Wall Mounted) |
| Detection Distance | Max 8m(<24°C) |
| Detection Motion Speed | 0.6-1.5m/s |
| Detection Range | 360° |
| Time Delay | Min 10sec±3sec, Max 15min±2min |
