SKU:
|
EAN:
3800157655217

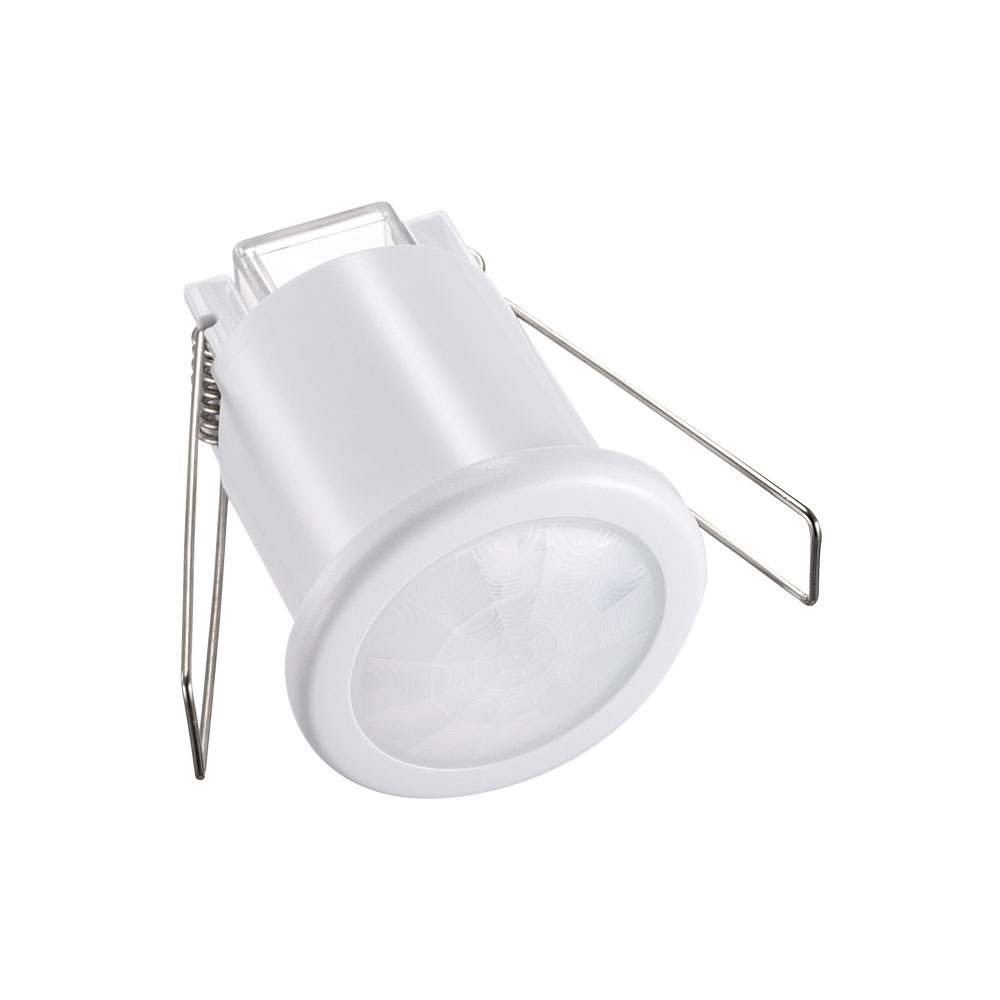

VT-8092 PIR CEILING SENSOR-WHITE BODY
The microwave motion detector uses high-frequency electromagnetic waves and integrated circuits.
Remote detection and barrier crossing.
High-frequency detection system for efficient operation.
Automation, comfort, security, and energy saving.
Adjustable time delay - Ambient light - Detection distance for various scenarios.
Compatible with V-TAC models.
|
Packaging
|
|
|---|---|
| Length Box mm | 60 |
| Width Box mm | 80 |
| Height Box mm | 70 |
|
Electricity Specifications
|
|
| Rated Load | Max 400W LED |
|
General specifications
|
|
| Dimensions | 50x62mm |
| Warranty | 2 Years |
| Body Color | White |
| IP Rating | IP20 |
|
Led Lighting
|
|
| VT-Model | VT-8092 |
| Body Material | PC |
| Input Power | AC:200-240V, 50Hz |
| Installation Type | Recessed |
| Sensor Type | Infrared |
| Detection Distance | Max. 8m(<24°C) |
| Detection Motion Speed | 0.6-1.5m/s |
| Detection Range | 360° |
| Time Delay | Min. 10sec±3sec, Max. 15min±2min |
