SKU:
|
EAN:
3800157655248

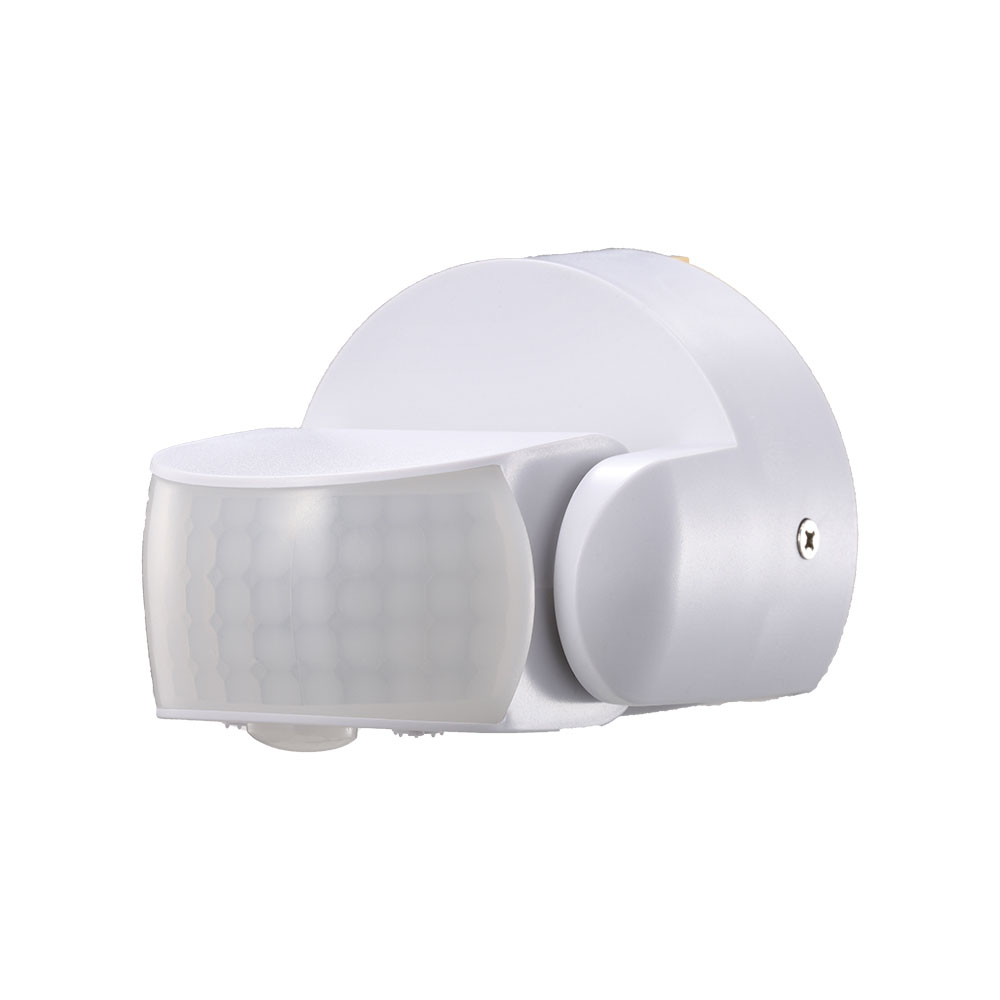

VT-8093 INFRARED MOTION SENSOR-WHITE BODY
The infrared motion sensor with integrated circuitry can detect heat signatures.
Adjustable time delay - Ambient light - Detection distance for various scenarios.
High-quality receivers for instant operation.
Efficient system for energy saving and security.
Compatible with V-TAC models.
|
Packaging
|
|
|---|---|
| Length Box mm | 82 |
| Width Box mm | 72 |
| Height Box mm | 82 |
|
Electricity Specifications
|
|
| Rated Load | Max 600W LED |
|
General specifications
|
|
| Dimensions | 76x92x62.5mm |
| Warranty | 2 Years |
| Body Color | White |
| IP Rating | IP65 |
|
Led Lighting
|
|
| VT-Model | VT-8093 |
| Body Material | PC |
| Input Power | AC:200-240V, 50Hz |
| Installation Type | Surfaced |
| Sensor Type | Infrared |
| Detection Distance | 12m Max(<24°C) |
| Detection Motion Speed | 0.6-1.5m/s |
| Detection Range | 180°/360° |
| Time Delay | Min. 10sec±3sec, Max. 15min±2min |
