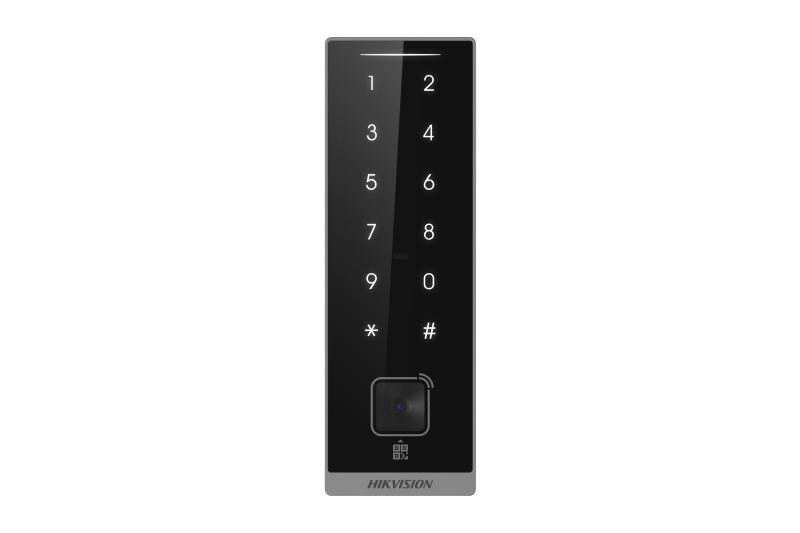

HIKVISION DS-K1105EMKB-QR Pro Card Reader Build-in M1 and EM card , PIN, QR code, bluetooth.
DS-K1105EMKB-QR
Pro Card Reader
Supports RS-485 protocol, Wiegand (W26/W34) protocol, and OSDP protocol
Build-in M1 and EM card reading module (Frequency: 13.56 MHz&125 KHz)
Built-in buzzer for identifying the reading status
Supports online upgrade
Supports multiple authentication methods such as card swiping, PIN, QR code, bluetooth, etc
Supports touch panel for operation
Supports occlusion detection, with bluetooth, it can realize door open via waving hands
Hikvision DS‑K1105EMKB‑QR – Lecteur de contrôle d’accès multifonction avec QR, RFID & claver numérique
The Hikvision DS‑K1105EMKB‑QR is a professional access control card reader designed to provide flexible and secure authentication using multiple credential types. It supports RFID cards, QR codes, PIN codes, and Bluetooth‑assisted interactions, making it suitable for modern access control systems in both indoor and outdoor environments.
Compact and robust, this reader interfaces with access control panels via industry‑standard RS‑485, Wiegand (W26/W34) and OSDP protocols, ensuring compatibility with a wide range of controllers. The built‑in buzzer and LED indicators provide clear feedback during user interaction, while the design allows seamless wall or frame installation.
Key Features:
• Multifunction access reader with RFID (M1 & EM) and QR code recognition
• Supports PIN entry and Bluetooth‑assisted opening options
• Compatible with RS‑485, Wiegand (W26/W34) and OSDP communication protocols
• Built‑in buzzer and LED indicators for status feedback
• Online firmware upgrade support
• Touch panel operation for PIN and QR input
• QR code recognition supported (barcode not supported)
• Wall mounting with compact dimensions (139 × 46 × 21.2 mm)
• Wide operating temperature range: ‑40 °C to 65 °C
• Lightweight and discreet installation (≈167.7 g)
| Identification Technology | EM-125KHz & MF-13.56MHz - Cards - Pin Code - QR Code - bluetooth |
| Interface | RS-485 + Wiegand |
