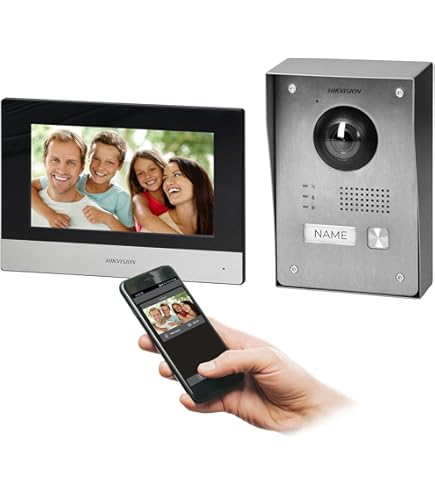

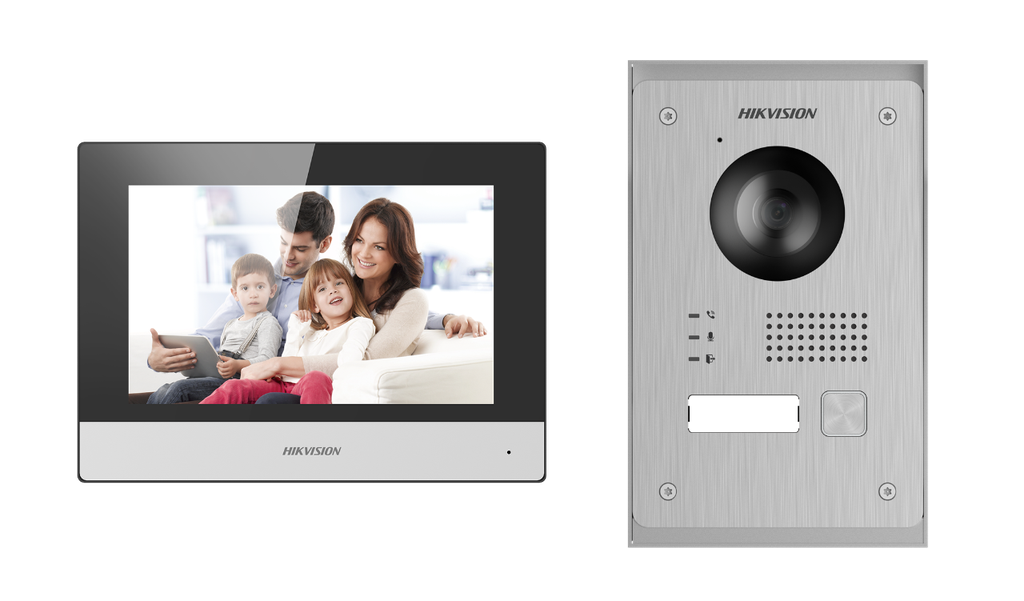

Hikvision DS-KIS703-P 2-Wires IP video intercom kit 1x call button Surface / flush mounting - - 7Inch Touch WIFI Monitor

No separate central unit/controller is required. A flush-mounted and surface-mounted box for the outdoor station is included in the kit, as is a power supply.

• Two-wire indoor station

• Receive video calls and unlock via mobile app anytime, anywhere

• 7-inch touchscreen, user-friendly interface, plug & play

• Easy and cost-effective installation

• Villa door station

• High-quality imaging with 2 MP resolution

• Easy and cost-effective installation

• User-friendly design, name tag, LED communication status indicator

• IP65 water-resistant, preventing water infiltration for outdoor use

Features:

Video Door Station Parameters:

• Camera: 2MP HD Camera

• Resolution: Main Stream: 1920 × 1080p, 720p Sub Stream: 704 × 576

• Night Vision: Low Light IR Supplement Mode: 3m

• WDR: True WDR

• Field of View: Horizontal: 144° Vertical: 95°

• Video Compression Standard: H.264

• Stream: Main Stream: 1080p@30fps, 720p@30fps Sub Stream: 4CIF

• Motion Detection: Supported

• BLC: Supported

• DNR: Supported

• Anti-Flicker Frequency: 50Hz, 60Hz

Door Station/Audio Settings:

• Audio Input: Built-in omnidirectional microphone
• Audio Output: Built-in speaker
• Audio Quality: Noise suppression and echo cancellation
• Audio Compression Standard: G.711 U, G.711 A
• Audio Compression Rate: 64 Kbps
• Audio Intercom: Two-way audio communication

Doorphone/Device Interfaces:

• RS-485: 0
• Alarm Input: 5
• Output: 12V/1A Output
• Debug Port: 1
• Two-Wire Interface: 1
• Grounding: 1
• Tamper Switch: 1

Door Station/General:

• Power Consumption: < 10 W
• Operating Temperature: -40°C to +60°C (-40°F to 140°F)
• Operating Humidity: 10% to 95%
• Installation: Surface Mount, Flush Mount
• Protection Level: IP65
• Indicator: 3
• Heating: Support
• Power Supply: From the Indoor Station

Door Station/System Settings:

• Operating System: Embedded Linux Operating System
• Operating Mode: Single Button
• Flash: 32 MB
• RAM: 256 MB

Door Station/Access Control Settings:

• Relays: 2

Door Station/Network Settings:

• Network Protocol: TCP/IP, RSTP
• Wired Network: 10/100 Mbps Ethernet

Indoor Station/Display Parameters:

• Display Screen: 7-inch TFT touchscreen
• Display Resolution: 1024 × 600
• Operating Method: Capacitive touchscreen
• Brightness: Adjustable

Indoor Station/Audio Settings:

• Audio Input: Built-in Microphone
• Audio Output: Built-in Speaker
• Audio Quality: Noise Suppression and Echo Cancellation
• Volume: Locally Adjustable
• Audio Compression Standard: G.711 U, G.711 A

Indoor Station/Device Interfaces:

• RS-485: 1
• Alarm Input: 8
• Two-Wire (Output): 1
• Two-Wire (Input): 1
• Power Input: 24 VDC
• Debug Port: 1

Indoor/General Station:

• Power Supply: 24 VDC
• Power Consumption: ≤ 8 W
• Operating Temperature: -10°C to 55°C (14°F to 131°F)
• Operating Humidity: 10% to 90%

Indoor Station/System Settings:

• Operating System: Embedded Linux
• Memory: 128 MB
• Flash: 32 MB

Indoor Station/Network Settings:

• Wired Network: Wi-Fi 802.11 b/g/n
• Wireless Network: 10/100 Mbps auto-adaptive
