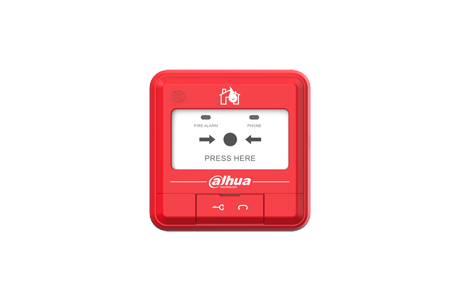

Conventional Manual Call Point DHI-HY-C121
DHI-HY-C121 Conventional Manual Call Point is a mated product of the Conventional Fire Alarm Control Panel. Integrated with two-wire and polarity-free technology, it can send alarm signals to the panel after the button is pressed.
Working Voltage | DC16V-DC28V |
Current | Standby current: ≤ 300μA Alarm current: ≤ 400μA |
Alarm Mode | Visual alarm |
Operating Temperature | –10°C to +55°C (+14°F to +131°F) |
Operating Humidity | ≤ 95% RH (no condensation) |
Dimensions (with base) | 90 mm × 90 mm × 44 mm (3.54" × 3.54" × 1.73") |
Weight (with base) | 136 g (0.30 lb) |
Installation | Wall Mount |
Compliance Standard | EN54-11:2001 |
